Hardware

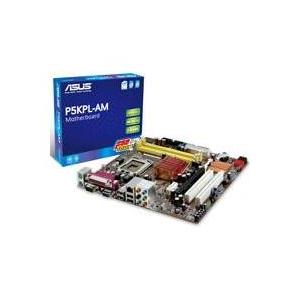

PLACA-MÃE ASUS P5KPL-AM

PLACA-MÃE ASUS P5KPL-AM Descrição Técnica:
• P5KPL-AM SPEC
• CPU LGA775 socket para Intel® Core™2 Extreme/Core™2 Quad / Core™2 Duo / Pentium® D / Pentium® 4 / Celeron E1000 Series e Celeron 400 Series
• Compativel com processadores Intel® 05B/05A/06
• Intel® Hyper-Threading Technology ready
• Chipset Intel® G31 / ICH7
• System Bus 1600(O.C.)/1333 / 1066 / 800 MHz
• Memory 2 x DIMM, max. 4GB, DDR2 1066(O.C.)//800/667 MHz, non-ECC, un-buffered memory
• Dual channel memory architecture
• Expansion Slots 1 x PCI-E x16
• 1 x PCI-E x1
• 2 x PCI
• VGA Intel Graphics Media Accelerator (Intel® GMA 3100) integrated
• Max. resolução:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz
• Storage Southbridge:
• - 1 x UltraDMA 100/66/33
• - 4 x Serial ATA 3Gb/s
• LAN Realtek RTL8102EL, 10/100 LAN
• Audio VIA VT1708B, 8-CH High-Definition Audio CODEC
• Anti-Pop Function
• Jack-detect & Multi-Streaming
• Support S/PDIF Out connector
• USB 8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
• ASUS Special Features ASUS CrashFree BIOS 3
• ASUS O.C. Profile
• ASUS Q-Fan
• ASUS EZ Flash 2
• ASUS MyLogo 2
• ASUS Exclusive Overclocking Features SFS (Stepless Frequency Selection)
• - FSB tuning from 200MHz up to 600MHz at 1MHz increment
• Overclocking Protection:
• - ASUS C.P.R.(CPU Parameter Recall)
• Back Panel I/O Ports 1 x PS/2 Keyboard
• 1 x PS/2 Mouse
• 1 x VGA
• 1 x COM
• 1 x Parallel port
• 1 x LAN (RJ45) port
• 4 x USB 2.0
• 8 Channel Audio I/O
• Conectores I/O Internos 2 x USB conectores suporta 4 portas USB adicionais
• 1 x internal speaker connector
• 1 x CPU/ Chassis/ Power Fan connector
• Front panel High Definition audio connector
• 1 x S/PDIF Out connector
• Chassis Intrusion connector
• CD audio in
• 24-pin EPS 12V Power connector
• 4-pin ATX 12V Power connector
• System Panel
• BIOS 8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI 2.0, SM BIOS 2.5
• Gerenciabilidade WOL, PXE, RPL, WOR by Ring, PME Wake Up
• Acessórios 1 x UltraDMA 100/66/33 cable
• 1 x Cabo de Floppy disk drive
• 1 xCabo SATA
• 1 x Cabo SATA Power
• I/O Shield
• Manuel do Usuário
• Cd de suporte aos Drivers
• ASUS PC Probe II
• ASUS Update
• Anti-virus software
